300W FM Broadcast Exciter Transmitter 300 Watt XE300 Eddystone

The XE300 is a highly advanced, fully featured broadcast FM exciter that is also ideally suited for use as a low power stand alone transmitter. Use of wideband design techniques means that frequency setting is easily achieved from soft keys on the front panel with no further tuning required. This facility may be password protected. 300W FM Transmitter Exciter 300 Watt Watts Eddystone Broadcast.

The frequency can also be remotely controlled if needed via the RS232 or TCP/IP ports on the rear of the unit. The XE300 uses an ultra linear modulator to give superb sound reproduction with freedom from overshoots and artefacts. The modulator also features a precision TCXO for exceptional frequency stability. Transmitter Exciter Amplifier FM Broadcast 300W Eddystone for use as a low power stand alone transmitter.

The PA Section in the XE300 uses the world renowned heat dissipating “fresh-air-tunnel” concept. The fan provides cooling to the specially designed heat sink with a stream of air that needs no filtering, saving on routine filter replacements. It will operate into any load without damage thanks to its VSWR cut back circuit that protects the power amplifier stage from adverse operating conditions. FM Exciter Transmitter Exciter Amplifier 300 Watt Watts 300W FM Eddystone Broadcast.

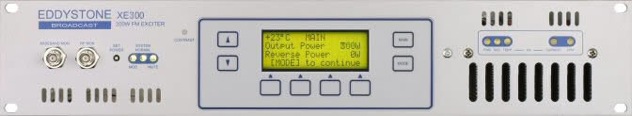

The XE300 front panel metering shows forward and reflected power together with internal voltages, temperature and the modulation level. Quick view LED’s show advanced status information including CPU ok, system normal, modulation fault and external mute. 300 watt watts 300w FM Transmitter Exciter Eddystone Broadcast 300W FM Exciter.

 XE300 is a highly advanced, fully featured broadcast FM exciter that is also ideally suited for use as a low power stand alone transmitter. Use of wideband design techniques means that frequency setting is easily achieved from soft keys on the front panel with no further tuning required. This facility may be password protected. 300W FM Transmitter Exciter 300 Watt Watts Eddystone Broadcast.

Pasted Graphic stacks_image_24_1

The PA section also has LEDs when show Forward, Reverse, temperature and CPU status. The addition of the unique modulation alarm, gives broadcasters alarm status outputs and indications that will show loss of audio or over modulation. A front panel monitor point for RF output is provided, as is a fully buffered baseband monitor for accurate monitoring of the modulator input. 300W FM Transmitter Exciter 300 Watt Watts Eddystone Broadcast.

The rear panel includes a remote control/monitoring socket that allows carrier muting and status signalling to an external system, additionally data sockets are provided for use with systems that have the ability to control exciters via RS232 or TCP/IP, these sockets are also used for programming advanced features within the XE300. Transmitter Exciter Amplifier FM Broadcast 300W Eddystone for use as a low power stand alone transmitter.

The XE300 is fully compatible with N+1 systems, with remote frequency selection being achieved by either RS232/TCPIP interface or rear panel logic selection of up to 6 preset frequencies. Very conservatively rated components and a switch mode power supply are used to ensure extremely high reliability and to give good efficiency. FM Exciter Transmitter Exciter Amplifier 300 Watt Watts 300W FM Eddystone Broadcast.

A comprehensive range of input options is available. The XE300 has a composite input and 3 SCA/RDS inputs. The XE300/S includes a stereo limiter and stereo encoder, the AES/EBU input version allows for a stereo digital input and the XE300/RBRX includes a rebroadcast receiver for translator/rebroadcast applications. 300 watt watts 300w FM Transmitter Exciter Eddystone Broadcast 300W FM Exciter.

300W FM Broadcast Exciter Transmitter 300 Watt XE300 Eddystone

Frequency range
Frequency stability
Power output
Harmonic & spurious
Spurious outputs
AM noise
Input sensitivity
MPX response
AF THD (multiplex version)
Power supply (AC)
Temperature (operating)
Humidity (operating)
Dimensions
Weight
Warranty

87.5 to 108MHz in 50kHz steps
< ± 200Hz
>300W (adjustable)
< -70dBc (30MHz to 1GHz)
< -100dBc (87.5MHz to 137MHz @ fc± 0.5MHz)
< 0.5% @ ± 40kHz deviation
+ 8dBu (adjustable) for ± 75kHz deviation
< ± 0.5dB (5Hz - 100kHz)
< 0.15% @ ± 75kHz deviation
90 - 264v, 47 - 63Hz
-20C to 55C
< 95% RH, non condensing
2U with 550mm intrusion to rack (inc. connectors)
14kg
5 Years

In line with our policy of continual development, we reserve the right to alter specifications without notice.
